Sand Making Type Vertical Shaft Impact Crusher Frosted VSI - 9532 220kw

Product description

VSI Vertical shaft impact crusher VSI-9532 sand making 320kw crushedr

1, Description

Vertical shaft impact crusher, also known as vertical shaft new sand making machine, is a kind of equipment for crushing and sand making. The vertical shaft fine crusher is widely used in the world to replace cone crushers, roller mills and ball mills. It has the characteristics of reasonable structure, convenient disassembly and high crushing efficiency.

2, Technical Parameters

model	Soft material	hard material	side and central feeding	fully central feeding	speed(r/min)	power(kw)	overall dimension(mm)
model	maximum feeding size (mm)		throughput(t/h)		speed(r/min)	power(kw)	overall dimension(mm)
VSI-7611	35	30	120-180	60-90	1700-1890	55×2	4100×2250×2258
VSI-8515	40	35	200-260	100-130	1520-1690	90×2	4140×2280×2425
VSI-9526	45	40	300-380	150-190	1360-1510	132×2	4560×2450×2780
VSI-1140	50	45	450-250	225-260	1180-1310	200×2	5100×2690×3200
VSI-7615	35	30	150-280	70-140	1700-1900	75×2	4100×2330×2300
VSI-8522	40	35	240-380	120-190	1500-1700	110×2	4140×2500×2700
VSI-9532	45	40	350-540	180-280	1300-1510	160×2	4560×2600×2900
VSI-1145	50	45	500-640	250-360	1100-1310	220×2	5000×2790×3320

3, Product advantages

1. The discharge particle size is small and uniform,
2. A small number of wear-resistant parts are made of extra-hard wear-resistant materials, which are small in size, light in weight, and easy to replace accessories.
3. It is easy to maintain
4. Novel, unique structure and stable operation.
5. Low energy consumption, high output and large crushing ratio.
6. The equipment is small in size, easy to operate, easy to install and maintain.
7. It has the function of shaping, the product is cubic, and the bulk density is large.
8. During the production process, the stone material can form a protective bottom layer, and the body has no wear and is durable.

4, Working principle

The ore material falls into the ore material distributor through the feeder, which evenly distributes the material between the guide impellers. If the feeding port is large enough, the crushing of minerals along the natural boundary can obtain a high particle size and crushing ratio, and can produce formed product particles. The rotor sprays the material horizontally onto the impact plane in the crushing chamber through centrifugal force at a very high speed. The ore-ore crusher is designed to have a lower crushing rate than the ore-metal crusher, and it is mainly used in the crushing stage of the rock in mining, such as in front of the ball mill. The broken material falls into the discharge area.

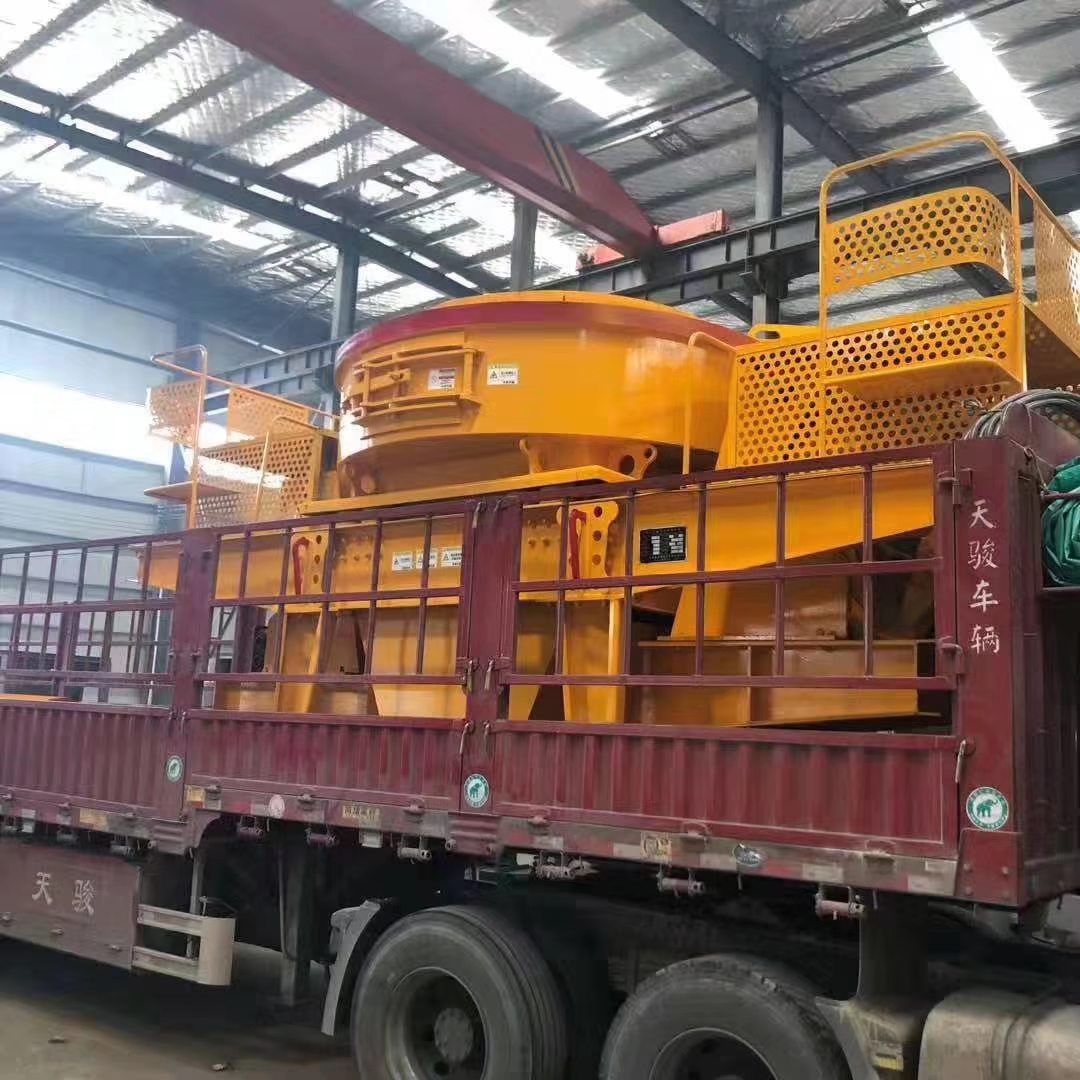

5, Factory manufacturing
