Product description

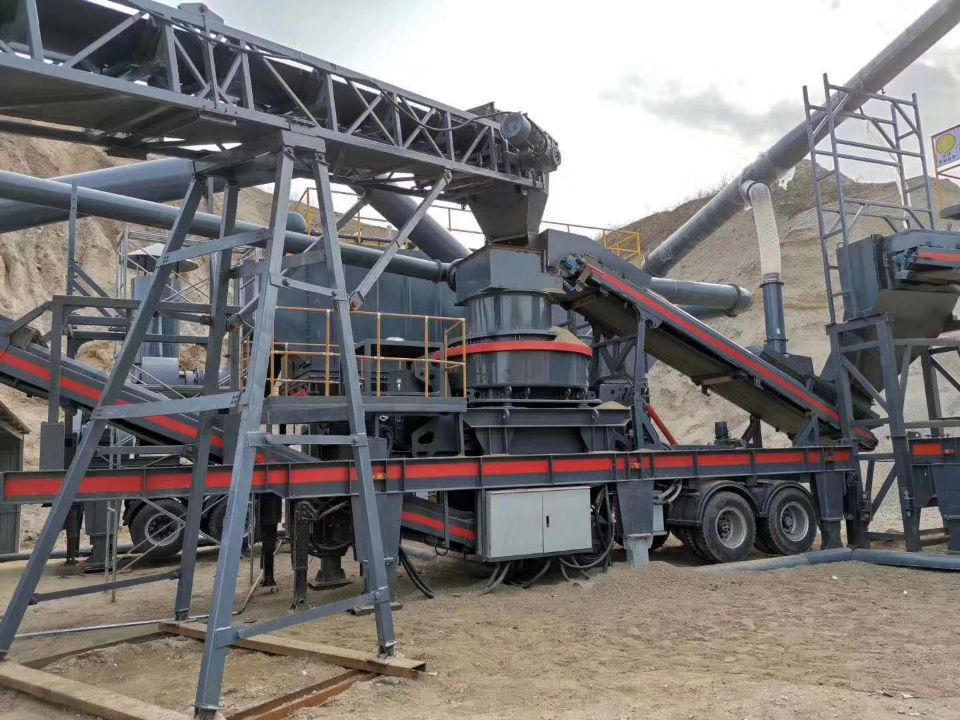

VSI 5X7611mpact crusher,Vertical shaft crusher,River pebble sand
making machine
1, introduction
The 5X vertical shaft impact crusher for making the sand is an
internationally advanced high-energy and low-consumption equipment
developed by our company on the basis of years of research and
development of mining machinery and equipment, and the introduction
and combination of advanced technology from similar products in
Germany. The discharging particle size is small and uniform
(3mm-8mm), and the parts have strong durability, fewer vulnerable
parts, and convenient maintenance. Compared with traditional
crushers, it has low energy consumption and large production
capacity. The output can be 30% per hour. -130 tons, its
performance plays an irreplaceable role in various ore fine
crushing equipment, and it is currently the most effective,
practical and reliable crushing equipment. This equipment is widely
used in the fine crushing of metal and non-metal ores, cement,
refractory materials, bauxite, emery, building materials, and
artificial make the sand. It is especially superior to other types
of crushers for medium-hard and extra-hard materials.
Suitable for river pebble, quartz stone, limestone, coal gangue,
basalt, granite, diabase, etc.Used in industries such as sand and
gravel yards, mixing plants, dry mortar, quartz sand, construction
waste crushing, etc., to provide high-quality for highways,
high-speed railways, high-rise buildings, hydroelectric dam
construction, and concrete mixing.
2, Technical Parameters
model | Capacity(t/h) | Max. feeding size(mm) | Overall dimension(mm) | Double electric motor power(kw) | Rotating speed(r/min) | Weight(t) |
Feedingatcenter andsizes | Allfeeding atcenter | Soft material | Hard material |
VSI6X-1263 | 545-583 | 454-486 | < 50 | < 60 | 5700x2980x4190 | 630 | 900-1200 | 23 |
VSI6X-1150 | 413-442 | 344-368 | < 45 | < 55 | 5500x2750x3950 | 500 | 1000-1300 | 10.3 |
VSI6X-1040 | 317-342 | 264-283 | < 40 | < 50 | 4560x2447x2778 | 400 | 1100-1400 | 20 |
VSI6X-9026 | 200-215 | 167-179 | < 35 | < 45 | 5000x2700x3300 | 264 | 1200-1500 | 18 |
VSI6X-8018 | 131-140 | 109-117 | < 30 | < 40 | 5100x2790x3320 | 180 | 1300-1700 | 15 |
润滑站 | flow(L/min) | 4-16 |
Pump motor power(kw) | 0.75 |
Heater power(kw) | 4 |
safeguard | Automatic shutdown without oil flow and oil pressure; Air cooling;
Automatic start of electric heating in winter |
3, Product advantages
1. After optimized design of the deep cavity rotor, the material
throughput can be increased by about 30%.
2. High sand formation rate and good product grain shape.
3. With fine crushing and coarse grinding functions.
4. After the peripheral guard plate is partially worn, it can be
used up and down to improve the material utilization rate and
increase the service life by more than 48%.
5. It is less affected by the moisture content of the material, and
the moisture content can reach about 8%.
6. Stone beating and stone beating are highly energy-saving and
high in crushing efficiency.
7. The products are cubes, with high bulk density and minimal iron
pollution.
8. The impeller's self-lining wear is small and the maintenance is
convenient.
9. Low consumption of wearing parts-the best crushing cavity
material impact angle design, less friction with wear parts, 30%
lower than the operating cost of traditional equipment, directly
reducing the cost of equipment.
4, Working principle
The material enters the machine body from the feeding hopper, and
is divided into two parts by the distributor. One part enters the
high-speed rotating impeller cavity from the middle of the
distributor, and is rapidly accelerated in the impeller. The
acceleration can reach hundreds of times of the acceleration of
gravity. Then, the material is ejected from the three evenly
distributed flow channels of the impeller at the speed of 60-70 M /
s, and the other part falls from around the distributor, Then they
impact on the material lining in the vortex branch cavity together,
rebound by the material lining, impact obliquely upward to the top
of the vortex cavity, change its movement direction, deflect
downward, and the material emitted from the impeller passage forms
a continuous material curtain.
Such a piece of material is subjected to two or more times of
impact, friction and grinding in the whirling crushing chamber. The
crushed material is discharged from the lower discharge port. In
the whole crushing process, the materials are crushed by self
impact, not in direct contact with metal components, but by impact
and friction with the material lining, which reduces iron pollution
and prolongs the mechanical wear time. The ingenious air flow self
circulation inside the whirl chamber eliminates the dust pollution.
5, Factory manufacturing and transport
