540mm Pitch Centrifugal Gold Concentrator Spiral Chute Concentrator
1. Product description
Spiral chute is the equipment of mining and mineral processing,
especially the sand mining of seashore, riverside, sand beach and
channel. Spiral chute has the advantages of reasonable structure,
simple installation, less floor area, simple operation, stable
beneficiation, clear ore separation, large processing capacity,
high efficiency, high beneficiation enrichment ratio, high recovery
rate and reliable operation. It has the advantages of light weight,
moisture-proof, rust proof, corrosion resistance, strong
adaptability to fluctuation of ore feeding amount, concentration,
particle size and grade, and no noise.
copper ore, zinc ore, aluminum ore, pyrrhotite, hematite, limonite,
pyrite, ilmenite, tungsten ore, molybdenum ore, gold ore, iron ore,
etc.
spiral chute is suitable for separating iron ore, tungsten ore, tin
ore, tantalum ore, niobium ore with particle size of 0.03-1 mm and
other non-ferrous metal, rare metal and non-metallic mineral bodies
with specific gravity difference.
2. Technical Parameters
| Model | 5LL-1500 | 5LL-1200 | 5LL-900 | 5LL-600 | 5LL-400 |
| external diameter(mm) | 1500 | 1200 | 900 | 600 | 400 |
| pitch(mm) | 540.720 | 900.720.540 | 675.540.405 | 450.360.270 | 240.18 |
| Pitch diameter ratio (pitch/ diameter) | 0.75,0.6,0.45 | 0.75,0.6,0.45 | 0.75,0.6,0.45 | 0.75,0.6,0.45 | 0.75,0.6,0.45 |
| Lateral inclination(°) | 9° | 9° | 9° | 9° | 9° |
| Maximum number of screw heads installed per unit(PCS) | 4-2 | 4-2 | 4-2 | 3 | 3 |
| Max Feeding Size(mm) | 0.3-0.02 | 0.3-0.02 | 0.3-0.02 | 0.3-0.02 | 0.3-0.02 |
| Feed concentration | 25-55 | 25-55 | 25-55 | 25-55 | 25-55 |
| Processing capacity (T / h) | 8-6 | 4-6 | 2-3 | 3 | 2 |
3. Product advantages
1. Small volume and large production capacity
The spiral chute has the advantages of simple structure, small
volume and small floor area, so it is very convenient for
installation and transportation, light weight, moisture-proof and
rust proof, which is conducive to daily operation and large
production capacity.
2. No noise, environmental protection and energy saving
The spiral chute itself has no running parts, no power consumption
and almost no noise; Because of the high content of feed and no
washing water, the double effect of environmental protection and
energy saving is achieved.
3. It is easy to operate and adaptable
The spiral chute is not harsh to the operation requirements (such
as feed particle size, mass fraction, etc.), even if the feed
amount, feed concentration, feed particle size and raw ore grade
are changed, it has little effect on the separation index and has
strong adaptability.
4. The treatment effect is good
Spiral chute is not only easy to operate, but also can achieve good
treatment effect, such as stable beneficiation, clear ore
separation, large treatment capacity, high efficiency and high
beneficiation enrichment ratio.
4. Working principle
The spiral chute is erected, the vertical line is calibrated, and
the iron frame or wood is used to fix it in a suitable position.
The ore is sent to the two feeding ports on the top of the spiral
by the sand pump, and the make-up water is added to adjust the
concentration of the ore paddle.
The ore paddle naturally swirls from high to low, generating an
inertial centrifugal force in the rotating inclined flow velocity,
which is based on the difference in the specific gravity, particle
size and shape of the ore, Through the action of gravity and
centrifugal force of swirling flow, the ore and sand are separated.
The concentrate flows into the concentrate hopper and is connected
by pipeline. The tailings flows into the tailings hopper and is
connected to the sand pool by pipeline, and then is discharged by
sand pump. The whole process of mineral processing is completed.

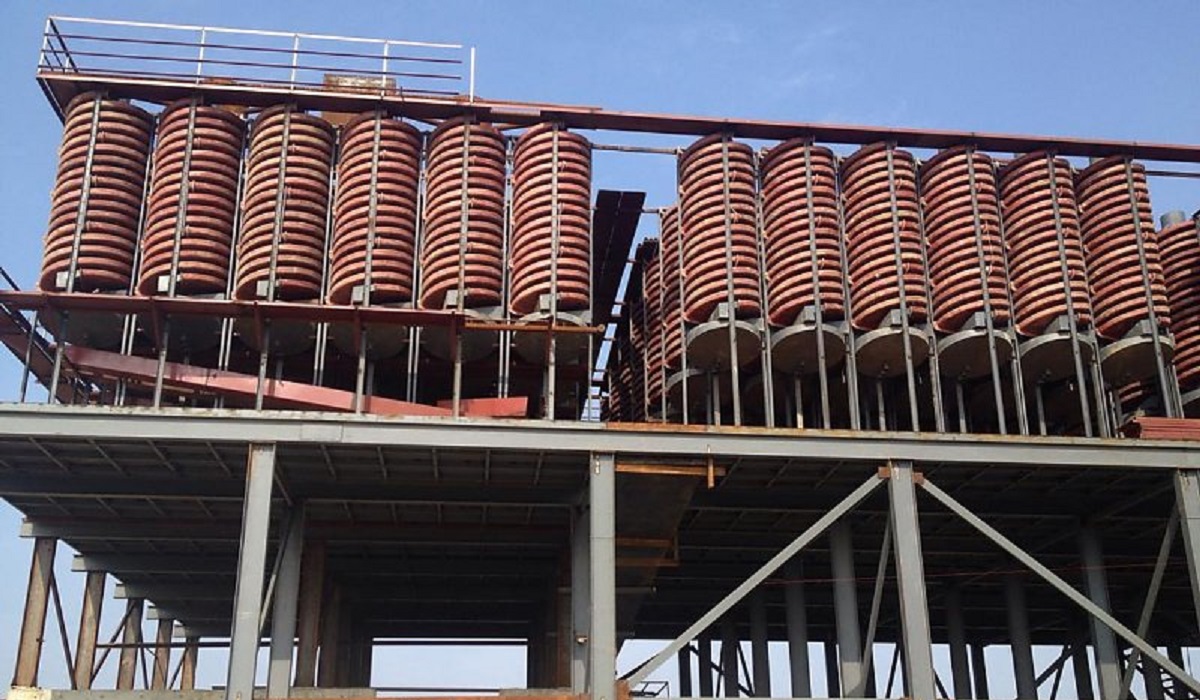

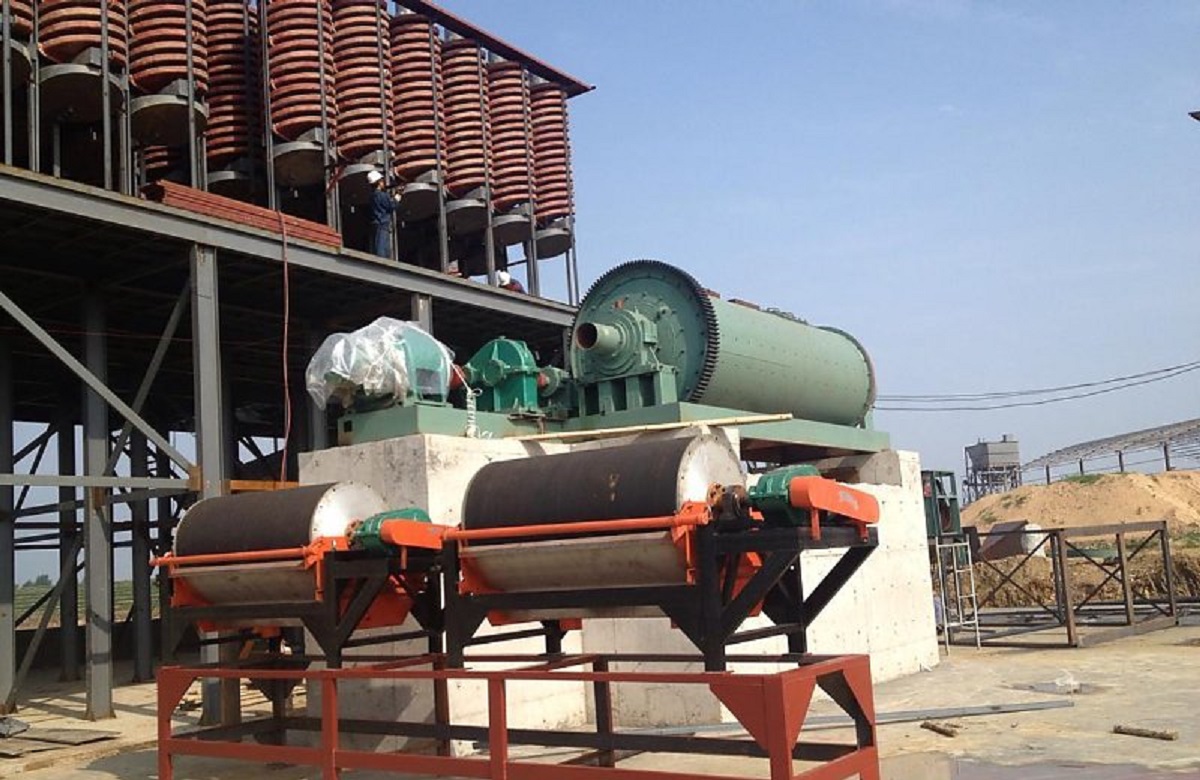

5. Factory manufacturing and scene
