Product description
PEX250X1000 Jaw crusher Cone crusher Stone crusher Mine crusher
1, Description

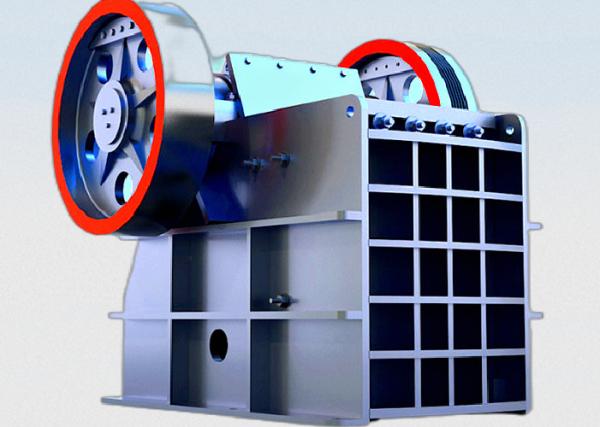

PE series jaw crushers are commonly known as jaw crushers. They are
often used as primary crushers in various crushing production
lines. This jaw crusher simulates the movement of the two jaws of
an animal, extruding,twisting and grinding the materials in the
crushing cavity though the opening and closing of two jaw
plates(moving jaw and fixed jaw).
2, Technical Parameters
| Model | Feed inlet size(mm) | Max inlet size(mm) | Capacity(t/h) | Electric power(kw) | Overall size LxWxH(mm) | Weight(t) |
| PE150× 250 | 150× 250 | 125 | 1-5 | 5.5 | 875× 758× 850 | 0.81 |
| PE250× 400 | 250× 400 | 210 | 5-20 | 15 | 1450× 1315× 1296 | 2.8 |
| PE400× 600 | 400× 600 | 340 | 25-65 | 30 | 1565× 1732× 1586 | 6.5 |
| PE500× 750 | 500× 750 | 425 | 45-80 | 55 | 1892× 2054× 1853 | 10.1 |
| PE600× 900 | 600× 900 | 500 | 70-150 | 55-75 | 2520× 1840× 2303 | 15.5 |
| PE750× 1060 | 750× 1060 | 630 | 130-260 | 110 | 2620× 2302× 3110 | 28 |
| PE900× 1200 | 900× 1200 | 750 | 220-500 | 110-132 | 3789× 2826× 3025 | 50 |
| PE1000× 1200 | 1000× 1200 | 850 | 250-700 | 132 | 3889× 2826× 3025 | 57 |
| PE1200x1500 | 1200× 1500 | 1020 | 400-1000 | 160-220 | 4200× 3750× 3820 | 100.9 |
| PEX150x750 | 150x750 | 125 | 5-16 | 15 | 1200x1500x1200 | 3.8 |
| PEX250x750 | 250x750 | 210 | 15-30 | 30 | 1667x1545x1250 | 5.6 |
| PEX250x1000 | 250x1000 | 210 | 20-50 | 30 | 1530x1992x1380 | 7 |
| PEX250x1200 | 250x1200 | 210 | 25-60 | 37 | 1900x2190x1430 | 8 |
| PEX300x1300 | 300x1300 | 250 | 30-105 | 55-75 | 2720x1950x1600 | 11 |
| PEW250x1000 | 250x1000 | 220 | 15-50 | 37 | 1400x1850x1310 | 6.8 |
| PEW250x1200 | 250x1200 | 220 | 20-60 | 37 | 1400x20500x1310 | 7.8 |
| PEW400x600 | 400x600 | 350 | 15-70 | 37 | 1920x1460x1840 | 8 |
| PEW760 | 760x1100 | 620 | 150-350 | 110 | 2600x2500x2200 | 27 |
| PEW860 | 860x1100 | 720 | 200-500 | 132 | 3300x2320x3120 | 32 |
3, Product advantages
1, Good stability and high reliability
2, Simple structure and easy maintenance
3, Advanced technology and long service life
4, Large capacity and good grain shape
4, Working principle
When the CS series high-efficiency cone crusher works, the motor
drives the eccentric sleeve to rotate through the V-belt, large
pulley, drive shaft, small bevel gear, and large bevel gear. The
axis of the crushing cone rotates under the force of the eccentric
shaft sleeve. , So that the surface of the crushing wall is close
to and away from the surface of the rolling mortar wall from time
to time, so that the material is continuously impacted, squeezed
and bent in the annular crushing cavity composed of the fixed cone
and the movable cone. After many times of extrusion, impact and
bending, the material is crushed to the required size and
discharged through the lower part.
5, Factory manufacturing and scene
