Product description
PEX300X1300 Jaw crusher Cone crusher Stone crusher Mine crusher
1, Description
PE series jaw crushers are commonly known as jaw crushers. They are
often used as primary crushers in various crushing production
lines. This jaw crusher simulates the movement of the two jaws of
an animal, extruding,twisting and grinding the materials in the
crushing cavity though the opening and closing of two jaw
plates(moving jaw and fixed jaw).
4, Technical Parameters
| Model | PEV75 | PEV90 | PEV106 | PEV125 | PEV160 | PEV200 |
|
| Feed inlet size(mm) | 750 | 900 | 1060 | 1250 | 1600 | 2000 |
|
| Feed port depth(mm) | 500 | 600 | 750 | 950 | 1200 | 1500 |
|
| Electric power(kw) | 55-75 | 75-90 | 132 | 160 | 250 | 400 |
|
| Discharge Size(mm) | Size of discharge port(mm) | Capacity(t/h) |
|
| 0-60 | 40 | 55-80 | | | | | |
|
|
| 0-75 | 50 | 70-90 | | | | | |
|
|
| 0-90 | 60 | 80-110 | 120-155 | | | | |
|
|
| 0-105 | 70 | 105-130 | 140-180 | 155-200 | | | |
|
|
| 0-120 | 80 | 120-150 | 160-210 | 175-230 | | | |
|
|
| 0-135 | 90 | 130-170 | 180-235 | 200-260 | | | |
|
|
| 0-150 | 100 | 150-190 | 200-260 | 220-290 | 290-380 | | |
|
|
| 0-185 | 125 | 190-260 | 250-325 | 280-365 | 350-455 | | |
|
|
| 0-225 | 150 | 250-340 | 300-390 | 335-435 | 410-535 | 520-675 | |
|
|
| 0-260 | 175 | | 350-455 | 390-510 | 470-610 | 595-775 | 760-990 |
|
|
| 0-300 | 200 | | | 445-580 | 530-690 | 675-880 | 855-1110 |
|
|
| 0-340 | 225 | | | | 590-770 | 750-975 | 945-1230 |
|
|
| 0-375 | 250 | | | | 650-845 | 825-1070 | 1040-1350 |
|
|
| 0-410 | 275 | | | | | 900-1170 | 1130-1470 |
|
|
| 0-450 | 300 | | | | | 980-1275 | 1225-1590 |
|
|
1, Good stability and high reliability3, Product advantages
The movable jaw assembly is made of high-quality steel castings,
and the heavy-duty eccentric shaft is also processed by forging
blanks, all of which make the jaw crusher extremely stable.
Compared with other crushers of the same specification, we use
larger and more durable eccentric shaft bearings to make it have a
higher load capacity and ensure its reliability.
2, Simple structure and easy maintenance
After continuous improvement and optimization, while ensuring the
performance of the machine, the machine structure is also
simplified. The whole machine is easier to operate, more convenient
for maintenance, and downtime for maintenance is greatly shortened.
3, Advanced technology and long service life
The use of heavy weight manufacturing technology, the use of
advanced digital component processing equipment to ensure the
precision of machine parts; the selection of advanced production
materials greatly enhances its compression resistance and wear
resistance, and greatly extends the service life of the machine.
4, Large capacity and good grain shape
Using advanced crushing principle, the proportion of cubes in the
product is obviously increased, and the size of needle-like stones
is reduced more uniformly.
4, Working principle
When the CS series high-efficiency cone crusher works, the motor
drives the eccentric sleeve to rotate through the V-belt, large
pulley, drive shaft, small bevel gear, and large bevel gear. The
axis of the crushing cone rotates under the force of the eccentric
shaft sleeve. , So that the surface of the crushing wall is close
to and away from the surface of the rolling mortar wall from time
to time, so that the material is continuously impacted, squeezed
and bent in the annular crushing cavity composed of the fixed cone
and the movable cone. After many times of extrusion, impact and
bending, the material is crushed to the required size and
discharged through the lower part.

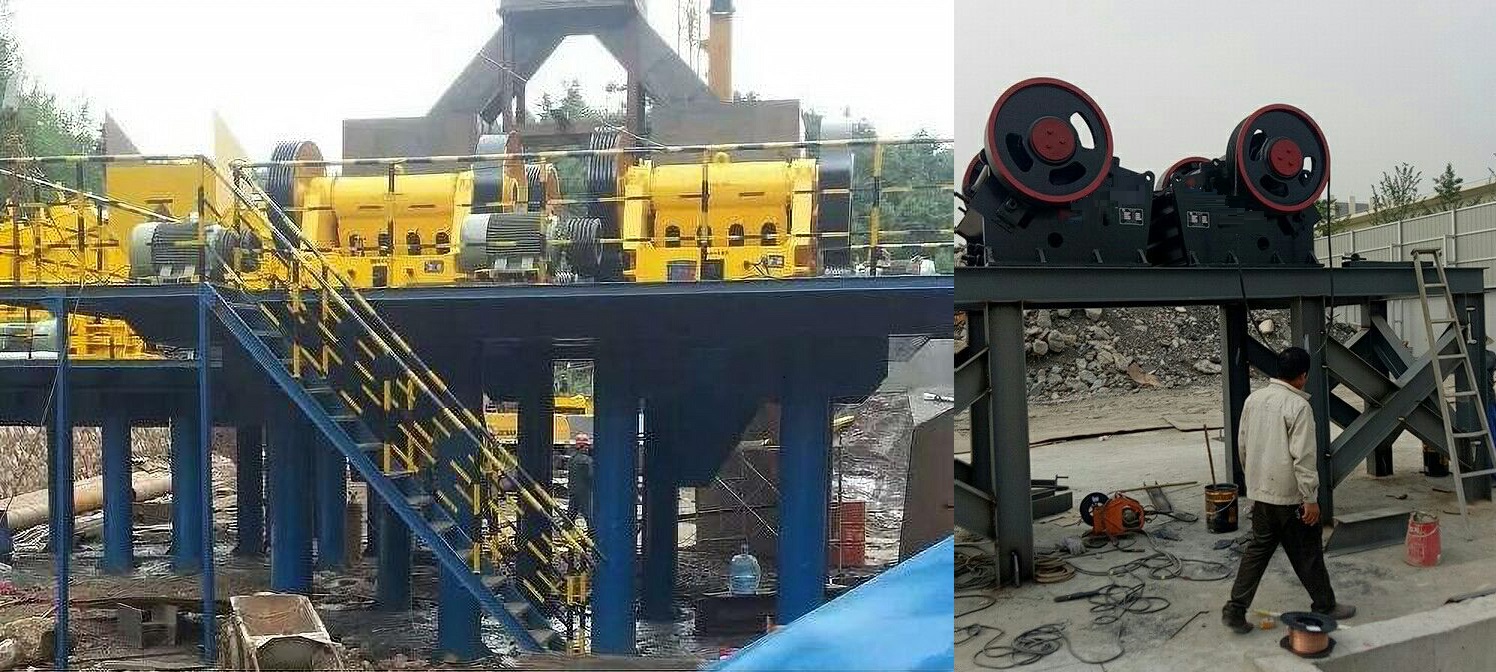

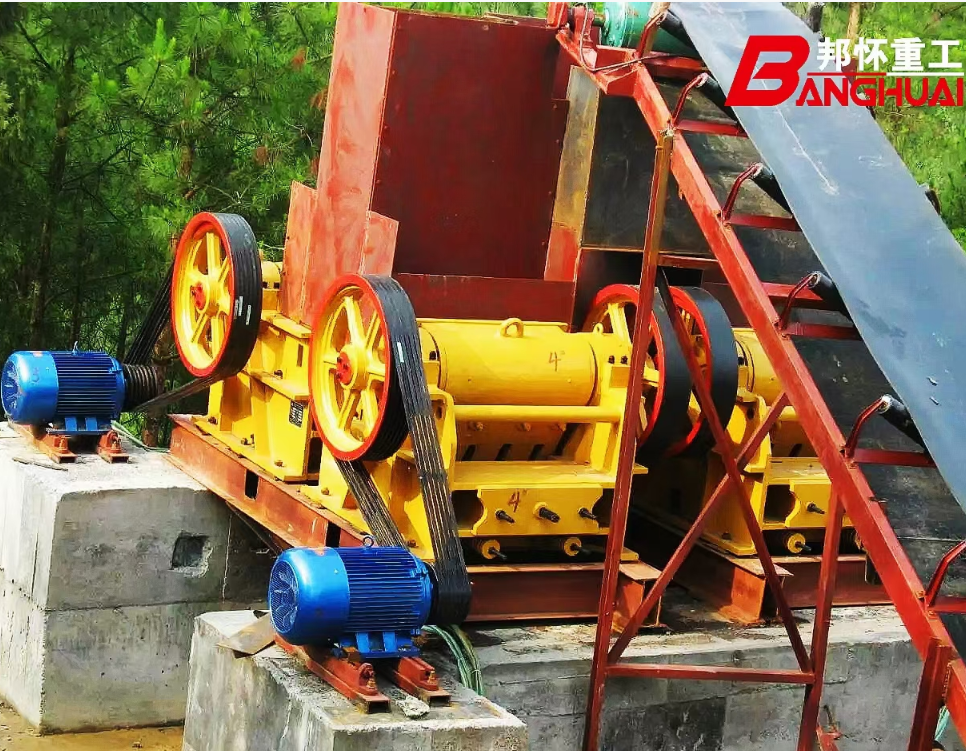

5, Factory manufacturing and scene
Tag:
Jaw Cone Crusher Stone crusher mine crusher
