Small Rock Jaw Crusher PE250 X 400 Dolomite Limestone Crushing

Product Categories

Shanghai Banghuai Heavy Industry Machinery Co., Ltd.

Contact Now

Name: Small Rock Jaw Crusher PE250 X 400 Dolomite Limestone Crushing
Brand: Banghuai
Price: 1 USD

Ask Lasest Price
Brand Name :	Banghuai
Model Number :	PE250 × 400
Certification :	ISO9001
Price :	USD
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	10
Delivery Time :	25 workdays

Add to Cart

PE250×400Jaw Crusher Stone Crusher In Mineral Equipment

PE250×400 Jaw crusher is mainly used in the industries of metallurgy, mining chemical,cement,construction,refractory

materials and ceramics,suitable to crush hard and soft ores with compressive strength less than 320MPa.

This machine can break materials into medium size and fine size.

technical parameter

Model	Feed opening (mm)	Maximum feeding size (mm)	Range of discharge opening (mm)	Capacity (t/h)	Power (kw)	Overall dimension (mm)
PE60×100	60×100	50	‘’6-15	0.04-0.5	1.5	712×350×460
PE150×250	150×250	125	‘’10-40	1-5	5.5	875×758×850
PE250×400	250×400	210	20-60	‘’5-20	15	1300×1090×1270
PE400×600	400×600	350	40-100	16-65	30/37	1730×1730×1630
PE500×750	500×750	425	50-100	45-100	55	1890×1916×1870
PE600×900	600×900	500	65-160	70-120	75	2520×1840×2303
PE750×1060	750×1060	630	80-140	130-260	110	2620×2302×3110
PE900×1200	900×1200	750	95-165	220-380	132	3789×2826×3025
PE1000×1200	1000×1200	850	195-265	230-380	160	3889×2826×3025
PE1200×1500	1200×1500	1020	150-300	400-800	250	4930×3150×3700
PEX250×1000	250×1000	210	25-60	16-50	30	1560×1950×1390
PEX250×1200	250×1200	210	25-60	20-60	37	2140×1660×1500
PEX300×1300	300×1300	250	20-90	16-105	55	2720×1950×1600

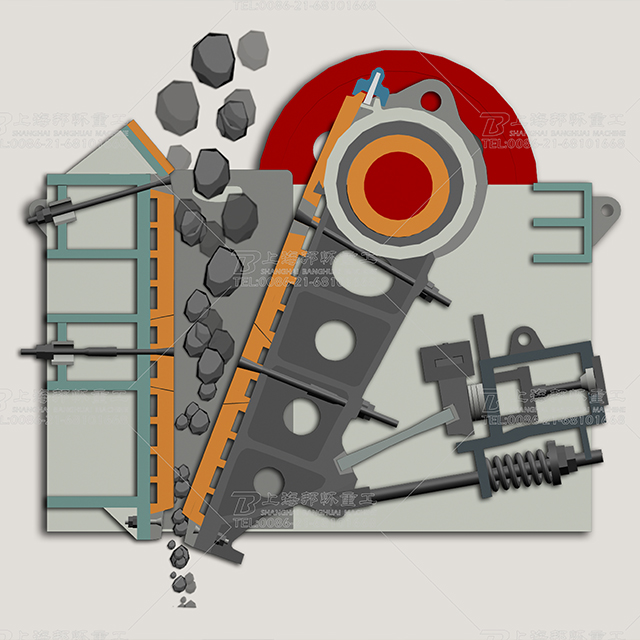

Working principle

Jaw crusher’s working type is of moving and squeezing. The working principle is as follows: jaw crusher

uses motor as its power. Through the motor’s wheels, the eccentric shaft is driven by the tringle belt and

slot wheel to make the movable jaw plate move by a regulated track. Therefore, the material in the

crushing cavity composed of fixed jaw plate, movable jaw plate and side-lee board can be discharged

through the discharging opening.Jaw crusher mainly consists of frame, eccentric shaft, jaw plate,

connecting bar, adjustment part and spring.
