Product description

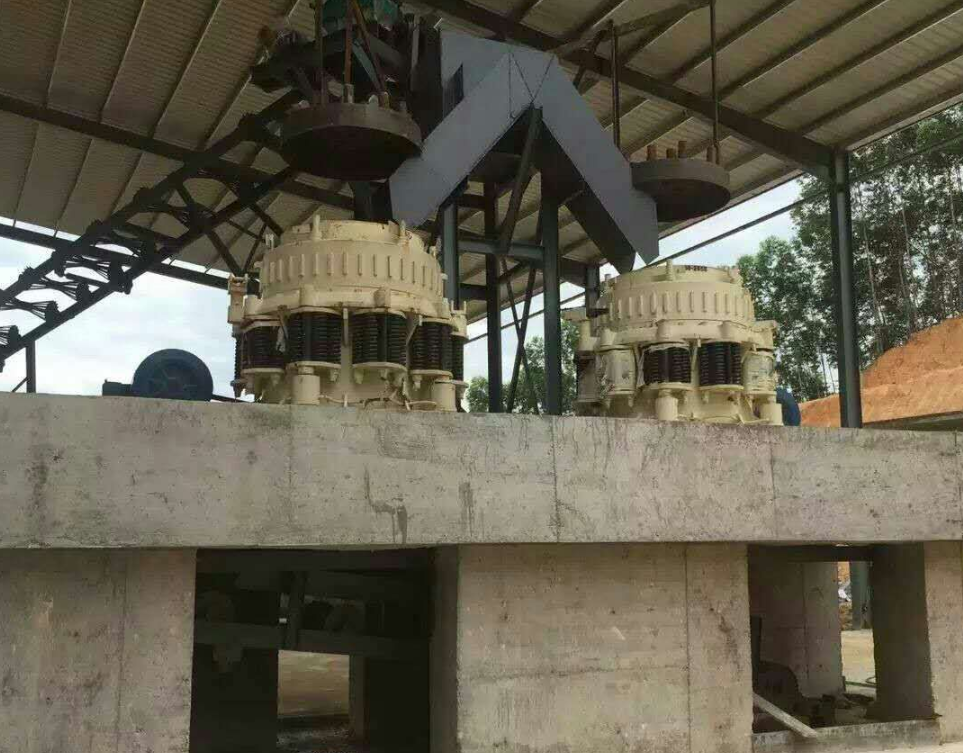

CS400B/D Jaw Cone Crusher Stone crusher stone crushing machine
stone cone crusher rock crusher machine
1, Description
The CS series high-efficiency cone crusher is designed and
developed by our company on the basis of introducing and absorbing
foreign technology, according to customer needs, based on the
principle of laminated crushing and the concept of more breaking
and less grinding, which integrates high swing frequency, optimized
cavity shape and reasonable stroke. All-in-one modern
high-performance crusher.
Application field:construction stone crushing and metal ore
crushing, etc
Applicable materials:Suitable for crushing granite, marble, basalt,
limestone, quartz stone, river pebble, iron ore, copper ore, etc.
2, Technical Parameters
| Model | Diameter of moving cone mm (inch) | Cavity type | Shut up | Opening edge | Adjustable size of discharge port(mm) | Speed of transmission shaft(r/min) | Power (kW) | Output(t/h) | External dimension (mm) |
| Feeder size(mm) |
| CS75B | 900 (3′) | Fine type | 83 | 102 | 9-22 | 580 | 75 | 45-91 | 2821×1880 ×2164 |
| Coarse type | 159 | 175 | 13-38 | 59-163 |
| CS75D | 900 (3′) | Fine type | 13 | 41 | 3-13 | 580 | 75 | 27-90 | 2821×1880 ×2410 |
| medium-sized | 33 | 60 | 3-16 | 27-100 |
| Coarse type | 51 | 76 | 6-19 | 65-140 |
| CS160B | 1295 (4 1/4′) | Fine type | 109 | 137 | 13-31 | 485 | 185 | 109-181 | 2800×2342 ×2668 |
| medium-sized | 188 | 210 | 16-31 | 132-253 |
| Coarse type | 216 | 241 | 19-51 | 172-349 |
| CS160D | 1295 (4 1/4′) | Fine type | 29 | 64 | 3-16 | 485 | 160 | 36-163 | 2800×2342 ×2668 |
| medium-sized | 54 | 89 | 6-16 | 82-163 |
| Coarse type | 70 | 105 | 10-25 | 109-227 |
| CS240B | 1650 (5 1/2′) | Fine type | 188 | 209 | 16-38 | 485 | 240 | 181-327 | 3911×2870 ×3771 |
| medium-sized | 213 | 241 | 22-51 | 258-417 |
| Coarse type | 241 | 268 | 25-64 | 299-635 |
| CS240D | 1650 (5 1/2′) | Fine type | 35 | 70 | 5-13 | 485 | 240 | 90-209 | 3917×2870 ×3771 |
| medium-sized | 54 | 89 | 6-19 | 136-281 |
| Coarse type | 98 | 133 | 10-25 | 190-336 |
| CS400B | 2134 (7′) | Fine type | 253 | 278 | 19-38 | 435 | 400 | 381-726 | 5200×4300 ×4700 |
| medium-sized | 303 | 334 | 25-51 | 608-998 |
| Coarse type | 334 | 369 | 31-64 | 870-1400 |
| CS400D | 2134 (7′) | Fine type | 51 | 105 | 5-16 | 435 | 400 | 190-408 | 5200×4300 ×4700 |
| medium-sized | 95 | 133 | 10-19 | 354-508 |
| Coarse type | 127 | 178 | 13-25 | 454-599 |
3, Product advantages
1. High reliability and good stability
2. Easy maintenance and easy operation
3. Low operating costs, wide range of applications
4. Laminated crushing, good output particle shape
4, Working principle
When the CS series high-efficiency cone crusher works, the motor
drives the eccentric sleeve to rotate through the V-belt, large
pulley, drive shaft, small bevel gear, and large bevel gear. The
axis of the crushing cone rotates under the force of the eccentric
shaft sleeve. So that the surface of the crushing wall is close to
and away from the surface of the rolling mortar wall from time to
time, so that the material is continuously impacted, squeezed and
bent in the annular crushing cavity composed of the fixed cone and
the movable cone. After many times of extrusion, impact and
bending, the material is crushed to the required size and
discharged through the lower part.
5, Factory manufacturing
