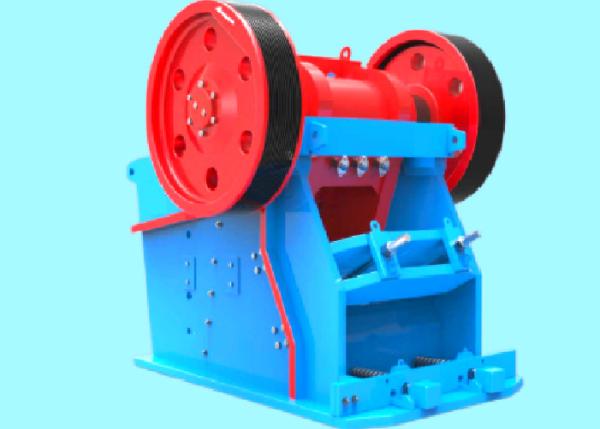

PEC110Hydraulic 15t H PE Jaw Crusher Ballast Barmac Ore crusher,
stone crushing plant
1. Product description
Compared with the traditional jaw crusher, the C series jaw crusher
pays more attention to the details in the design and manufacturing.
It adopts high-strength materials and has the advantages of higher
structural strength, high equipment reliability, large crushing
ratio, high output and low comprehensive processing cost.
2. Technical Parameters
| Model | PEC80 | PEC96 | PEC110 | PEC106 | PEC116 | PEC125 | PEC140 | PEC160 | PEC220 |
| Feed inlet size(mm) | 800(32) | 930(37) | 1000(44) | 1060(42) | 1150(45) | 1250(49) | 1400(55) | 1600(63) | 2000(79) |
| Feed port depth(mm) | 510(20) | 580(23) | 760(34) | 700(28) | 800(32) | 950(37) | 1070(42) | 1200(47) | 1500(59) |
| Electric power(kw) | 75 | 90 | 110 | 110 | 132 | 160 | 200 | 280 | 400 |
| Speed(r/min) | 350 | 330 | 260 | 280 | 260 | 220 | 220 | 220 | 200 |
| Discharge Size(mm) | Size of discharge port(mm) | Capacity(t/h) |
| 0-60 | 40 | 60-90 | | | | | | | | |
| 0-75 | 50 | 80-100 | | | | | | | | |
| 0-90 | 60 | 100-130 | 125-160 | | | | | | | |
| 0-105 | 70 | 120-160 | 145-185 | 155-220 | 160-230 | 170-220 | | | | |
| 0-120 | 80 | 140-180 | 165-220 | 180-235 | 185-245 | 190-250 | | | | |
| 0-135 | 90 | 160-200 | 185-245 | 210-250 | 220-260 | 215-280 | | | | |
| 0-150 | 100 | 220-280 | 210-270 | 230-300 | 240-310 | 240-310 | 290-380 | | | |
| 0-185 | 125 | 255-330 | 255-330 | 290-370 | 300-380 | 295-385 | 350-455 | 385-500 | | |
| 0-225 | 150 | 295-390 | 295-390 | 345-450 | 360-460 | 350-455 | 410-535 | 455-590 | 520-675 | |
| 0-260 | 175 | | | 395-520 | 410-530 | 105-525 | 470-610 | 520-675 | 595-775 | 760-990 |
| 0-300 | 200 | | | 450-595 | 460-610 | 160-600 | 530-690 | 590-765 | 675-880 | 855-1110 |
| 0-340 | 225 | | | | | | 590-770 | 655-850 | 750-975 | 945-1230 |
| 0-375 | 250 | | | | | | 650-845 | 725-945 | 825-1070 | 1040-1350 |
| 0-410 | 275 | | | | | | | | 900-1170 | 1130-1470 |
| 0-450 | 300 | | | | | | | | 980-1275 | 1225-1590 |
3. Product advantages
1. Strong structure
Welding type is generally used for small and medium specifications,
and assembly type is generally used for large specifications. It is
more convenient to transport and install, especially suitable for
underground mines, high-altitude mines and other narrow and
difficult places.
2. cavity design, large feed size
Compared with the traditional PE Series jaw crusher, it has the
advantages of large feed size, high output, uniform particle size
and low jaw wear. The heavy movable jaw assembly is durable.
3. Movable jaw guard plate design, integral bearing seat
It ensures the complete fit with the frame, makes the bearing run
more smoothly, and avoids the unnecessary radial load caused by the
combined bearing seat in the fastening process.
4. Convenient and quick adjustment of ore outlet
C series jaw crusher adopts mechanical or hydraulic way to adjust
the discharge port, and its double wedge adjustment mode is
simpler, safer and faster than the gasket adjustment mode, which
saves the downtime.
5. Integrated motor installation, shock absorption installation
design
The installation space of the jaw crusher is saved, the service
life of the triangle belt is longer, the rubber damping device is
fixed, and the impact on the foundation is reduced.
4. Working principle
The motor drives the belt and pulley, and the movable jaw swings up
and down through the eccentric shaft. When the movable jaw pushes
the movable jaw plate to move towards the fixed jaw plate, the
material is crushed or split. When the movable jaw and movable jaw
plate retreat under the action of eccentric shaft and elastic
shell, the materials that have been crushed or split before are
discharged from the lower discharge port of jaw plate. With the
continuous rotation of the motor, the broken jaw is used as
periodic crushing and discharging materials to realize mass
production and crushing. It is suitable for granite, marble,
basalt, limestone, quartz, pebble, iron ore, copper ore, etc.
5. Factory manufacturing and scene
