560mm Hydraulic Cone Crusher ore and high hardness rock crushing
1, Product description
The single cylinder hydraulic cone crusher is widely used in metal
and non-metal mines, building materials, transportation,
metallurgy, water conservancy and other industries, and it is
suitable for medium and fine crushing of various ores, such as iron
ore, non-ferrous metal ore, granite, limestone, quartzite,
sandstone, river pebble, etc.
2, Technical Parameters
| Spec.ification | Cavity Size (Coarse/Fine) | Discharging OpeningSize(mm) | MaxFeeding Size(mm) | Capacity(t/h) | Power(kw) | MovingCone Diameter(mm) | Weigh(t) |
| GP100S | S1 | 20～45 | 130 | 80～190 | 75～90 | 1550*1575*1965 | 7.35 |
| S2 | 16～30 | 90 | 60～125 |
| S3 | 10～25 | 50 | 40～100 |
| S4 | 4～16 | 38 | 25～55 |
| GP200S | S1 | 20～60 | 180 | 130～280 | 110～160 | 2100*1800*3000 | 10.9 |
| S2 | 16～45 | 130 | 100～230 |
| S3 | 10～30 | 70 | 90～210 |
| S4 | 6～22 | 42 | 45～142 |
| GP300S | S1 | 30～60 | 260 | 150～400 | 160～250 | 2380*2735*3265 | 16.2 |
| S2 | 20～40 | 180 | 110～355 |
| S3 | 16～30 | 130 | 100～260 |
| S4 | 8～25 | 70 | 72～252 |
| GP500S | S1 | 40～70 | 300 | 210～700 | 250～315 | 3780*2341*4531 | 33.3 |
| S2 | 30～60 | 210 | 160～580 |
| S3 | 20～50 | 160 | 140～510 |
| S4 | 13～38 | 85 | 124～423 |
3, Product advantages
1,The grain type is regular and the yield is high.
2,Strong crushing capacity.
3,Continuous and stable operation, and can prevent iron from mixing
into the automatic overload protection.
4,High efficiency rotary feeding device makes liner wear evenly.
5,Automatic overload protection against iron mixing.
4, Working principle
Composition: It is composed of upper frame, middle frame, lower frame, moving
cone, eccentric sleeve, transmission device and hydraulic cylinder.
Rotation: The motor drives the horizontal shaft to rotate, the horizontal
shaft drives the eccentric sleeve to rotate through the spiral
bevel gear meshing, and the eccentric sleeve drives the moving cone
to rotate and swing to achieve continuous crushing.
Granularity realization: The single-cylinder hydraulic cone crusher drives the main shaft
to drive the movable cone to move up and down by adjusting the
hydraulic cylinder at the bottom of the movable cone, and adjusts
the distance between the movable cone and the fixed cone liner to
control the product.
Overload protection function: When a foreign object (such as iron block) that is not easily
broken enters the crushing chamber, the accumulator is triggered,
and the hydraulic cylinder automatically causes the moving cone to
fall, thereby releasing the iron block, continuing to crush, and
protecting the crusher.

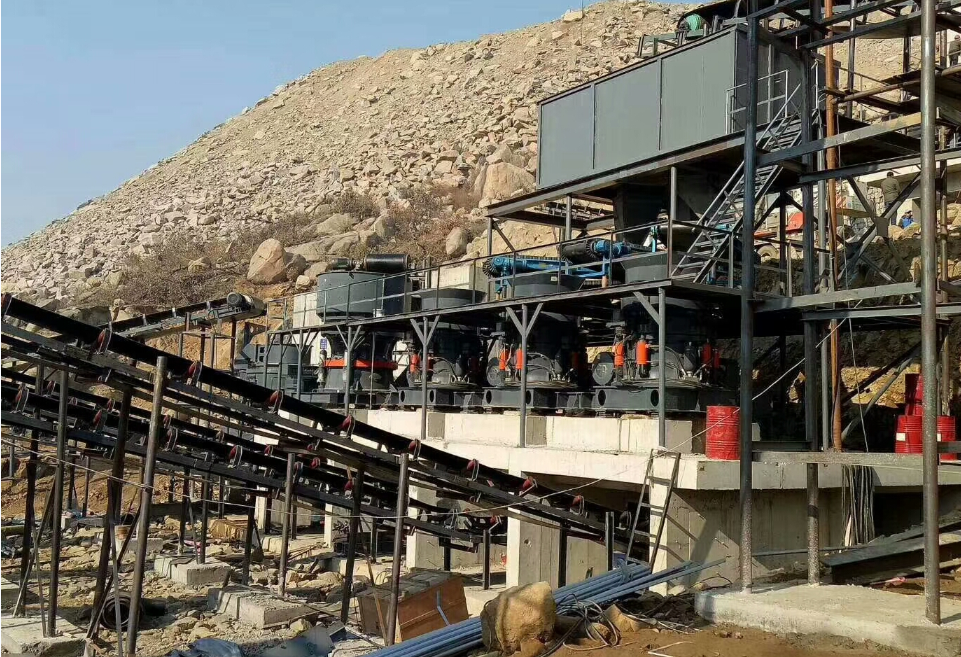

5, Factory manufacturing and scene
