1, Product discriptions

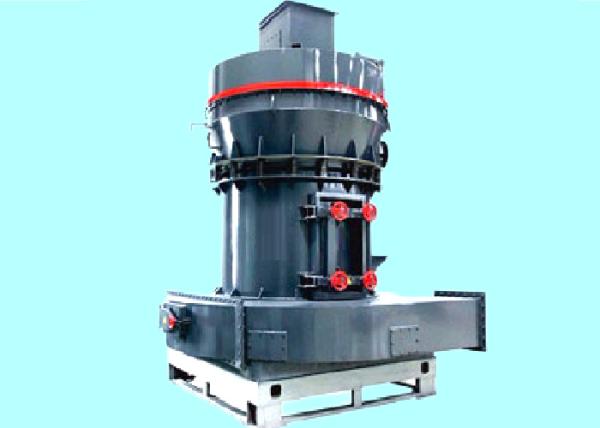

MTM Medium-speed grinding mill is a world leading tool for powder grinding. it absorbs world first-class industrial powder milling technology and organizes the technical experts and related engineers for elaborate design, test and improvement.

2, Technical Parameters

3, Product advantages

1. Interitance of Classical Design, Innovation of Science & Technology

MTM Medium-speed grinding mill adopts the classical pendulum rollers of Raymond Mill on the one hand and change the spring connection structure innovatively on t

he other hand, which can not only avoid the terrible impact of large materials on the axis and bearings, but also enhance the crushing strength of grinding rollers so as t

o increase the yielding.

2. Lower Electricity Consumption, Higher Economic Profits

Under an ideal circumstance, MTM Medium-speed grindingmill consumes 1.02kW/h when yielding a ton of materials and 1.48kW/h when feeding a ton of materials. Its

electricity consumption is lower than that of ball grinding mill of the same level by over 60%.

3 .Impeller-type Energy-saving Fan Having Higher Efficiency

it adopts the high-efficiency impeller energy-saving fan, and the working efficiency of which can reach 85% or above while traditional grinding mills equipped with str

aight blade fan can reach only 62% of air inducing efficiency. Under the equivalent production requirements, MTM Medium-speed grinding millcan realize better powd

er separating and lower power consumption.

4. Lower Energy Consumption - Cambered Air Duct

MTM Medium-speed grinding milluses the cambered air duct with low resistance. By this, air flow enters the grinding milltangentially. Compared with traditional straig

ht air ducts, the inlet of this air duct is smooth with little resistance and the outlet is easy for the dispersing of materials which can avoid material piling, effectively reduci

ng energy consumption of the system.

5. Digitalized Processing, Higher Precision

There are tens of lines of numerical controlling machine tools. Operations such as steel plates' cutting, bending, planing, milling and paint spraying are all controlled nu

merically. The machining precision is high, especially for the core parts.

4, Working Principle

After jaw crushers break large bulky materials to smaller ones, elevators work to send materials to the hopper. Then, by electromagnetic vibrating feeders, broken materials are evenly and quantitatively sent to the grinding chamber of MTM Medium-speed Grinding Mill. After grinding, materials are blown away by airflow to the powder concentrator for classifying.

Under the action of the impeller of powder selector, materials which fail to meet fineness would be sent back to grinding chamber to get another grinding while qualified powders would be collected by cyclone powder collector and discharged from the bottom as finished products. And, after that, the airflow would go into the fan along with the air return duct at the top of cyclone power collector.

This system adopts a closed circuit and runs under positive and negative pressure. Because materials have a certain content of moisture, heat generated during grinding may lead air evaporation or swell in the grinding chamber so that the amount of airflow increases sharply. Besides, if the feed port and joints of pipelines are not sealed well, external air may intrude the grinding mill and lead imbalance of airflow.

5, Factory manufacturing and transport
