Product description

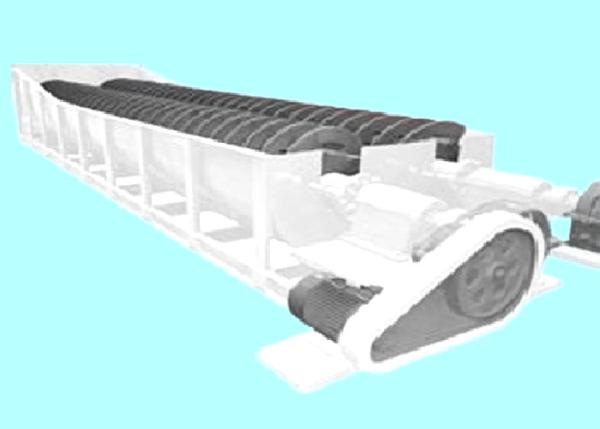

2LSX1120 Series Spiral Sand Washer
1, Description
The spiral sand washing machine is suitable for the washing,
grading, and impurity removal operations in metallurgy, building
materials, water and electricity industries, and for the washing of
fine-grained and coarse-grained materials. It is suitable for
construction sand and gravel for road construction.
The spiral sand washing machine has low power consumption, high
cleanliness, good sealing structure, fully enclosed transmission
device, and adjustable weir plate, which ensure the product's high
efficiency and durability, good cleaning and dehydration effects,
and stable fine-grained products.
Suitable for cleaning, grading and impurity removal in metallurgy,
building materials, hydropower and other industries, It is suitable
for the washing operation of fine-grained and coarse-grained
materials
Suitable for washing, grading, and cleaning operations in
metallurgy, building materials, hydropower and other industries.
2, Technical Parameters
| Model | Number of spirals | Screw(mm) | Iengthoftube(mm) | Maximumfeed sizemm | Consumption(t/h) | Capacity(t/h) | weight(t) | Power(kw) | Speed(r/min) |
| XL508 | 1 | 508 | 4500 | ≤10 | 14-58 | 20 | 2.67 | 7.5 | 25 |
| XL610 | 1 | 610 | 4500 | ≤10 | 18-65 | 25-50 | 3.8 | 7.5 | 25 |
| XL762 | 1 | 762 | 4800 | ＜10 | 25-70 | 30-70 | 5.2 | 11 | 23 |
| 2XL762 | 1 | 762 | 4800 | ＜10 | 40-140 | 140 | 7.45 | 2x11 | 23 |
| XL920 | 1 | 920 | 7585 | ≦10 | 35-80 | 100 | 6.2 | 11 | 21 |
| 2XL920 | 2 | 920 | 7585 | ≦10 | 70-160 | 200 | 11.5 | 2x11 | 21 |
| XL1120 | 1 | 1120 | 9750 | ≦10 | 55-150 | 175 | 10.9 | 18.5 | 17 |
| 2XL1120 | 2 | 1120 | 9750 | ≦10 | 110-300 | 300 | 17.8 | 2x18.5 | 17 |
3, Product advantages
1. Large processing capacity and low production cost;
2. Multiple functions, high cleaning degree;
3. Simple structure and low failure rate;
4. Long service life, no pollution;
4, Working principle
When working, the motor drives the impeller to rotate slowly after
deceleration by the V-belt, reducer, and gear. The sand and gravel
enter the washing tank with the feeding trough, roll under the
impeller, and grind each other to remove impurities covering the
surface of the gravel. Destroy the water vapor layer coated with
sand to facilitate dehydration; at the same time, add water to form
a strong water flow, promptly take away impurities and foreign
objects with small specific gravity, and discharge them from the
overflow sink to complete the cleaning effect. The clean sand and
gravel are taken away by the blades, and finally the gravel is
poured from the rotating impeller into the discharge chute to
complete the sand and gravel cleaning function.

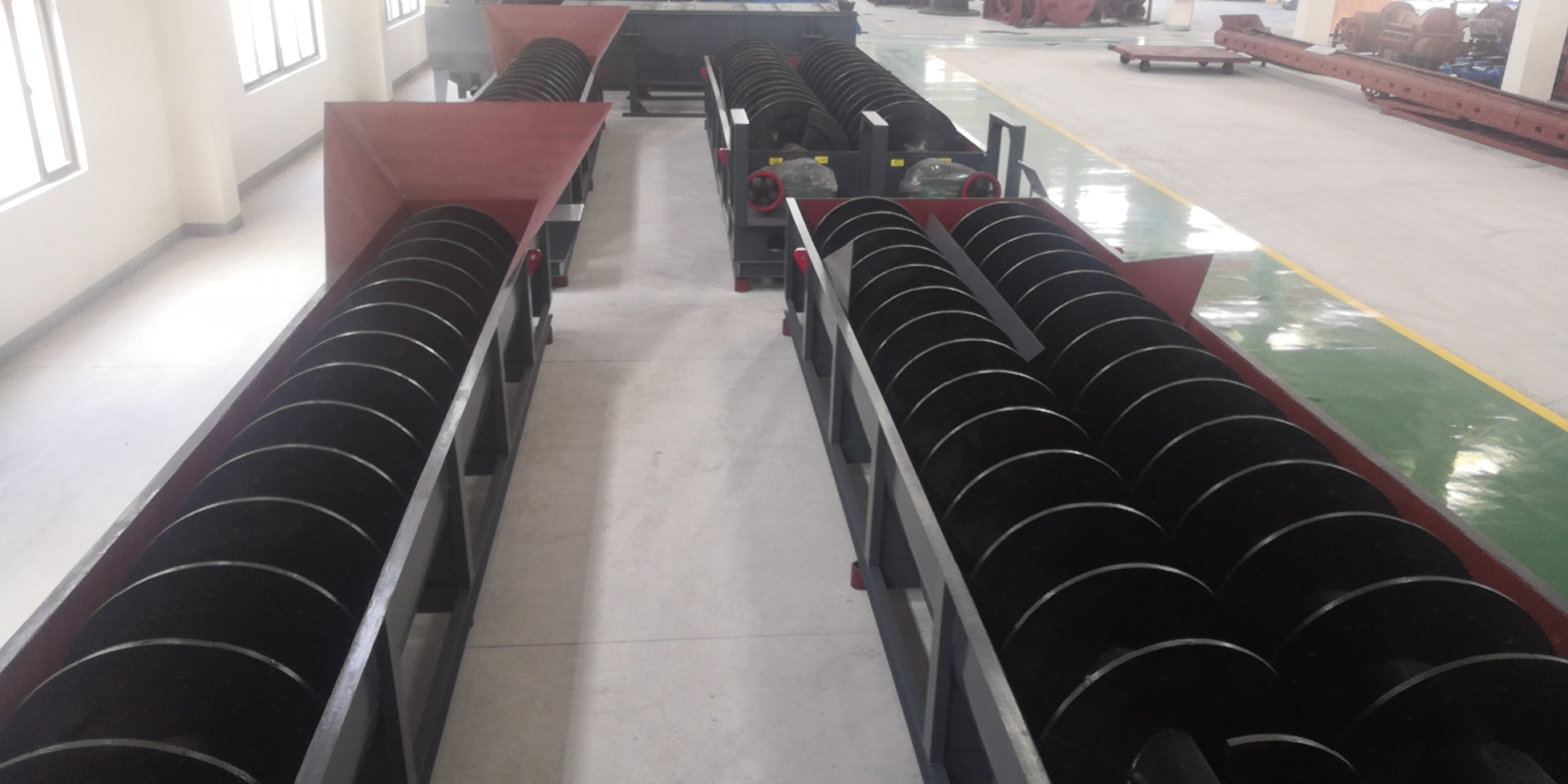

5, Factory manufacturing
