XSD Sand Washing Machines 18.5kw Sand Making Machine
1, Description

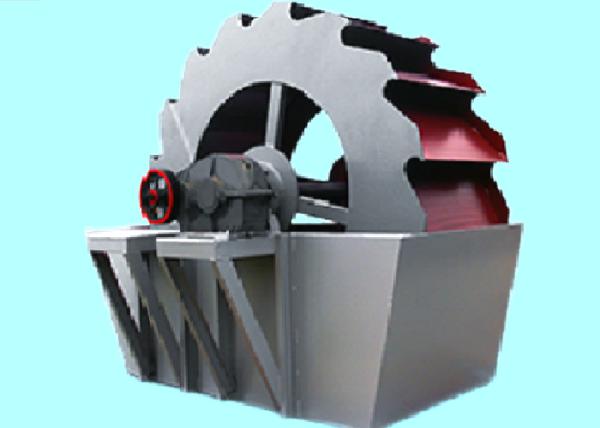

XSD Sand Washer is commonly known as wheel-bucket type sand washer.
It is developed and produced by through adopting domestic and
overseas advanced technologies and combining the actual situation
of domestic aggregate industry. It is usually used with the sand
maker.
Product Features: Simple structure, low failure rate, big capacity
and high cleanliness.
2, Technical Parameters
Model | Size of impeller(mm) | Maximumfeed size(mm) | Consumption(t/h) | Capacity(t/h) | weight(t) | Power(kw) | Speed(r/min) |
XSD2610 | 2600 | ≦10 | 2-5 | 40-80 | 4.8 | 7.5 | 6 |
XSD2816 | 2800 | ≦10 | 6-10 | 60-120 | 3 | 11 | 6 |
XSD3016 | 3000 | ≦10 | 12-20 | 80-160 | 7.6 | 15 | 6 |
XSD3620 | 3600 | ≦10 | 15-25 | 150-300 | 9.7 | 18.5 | 5 |
Note: 1. The above parameters are based on the loose specific gravity of
1.6t/m3,compressive strength < 150MPa and water content <
20%;
2. The processing capacity is affected by feeding uniformity,
particle size, gradation, lithology and linear speed.
3, Advantages
1. Large processing capacity and low production cost
The ideal output of a single machine can reach 180 tons/hour, which
basically meets the sand washing needs of our customers; the
machine has low investment, low power, and low power consumption,
effectively saving production costs.
2. Multiple functions, high cleanliness
The equipment has three functions of cleaning, dewatering, and
grading. When working, driven by the impeller, sand and gravel
grind each other to remove impurities covering the surface of the
sand and gravel, and at the same time destroy the water vapor layer
covering the sand, and complete the cleaning in a strong water flow
Miscellaneous function.
3. Simple structure and low failure rate
The sand washing machine has a simple and reasonable structure, the
impeller drive bearing device is isolated from water and
water-receiving materials, a novel sealing structure, and a fully
enclosed oil bath transmission device, which greatly avoids the
phenomenon of bearing damage caused by water, sand and pollutants
occur.
4. Long service life, no pollution
Good structural layout and effective sealing design make the
machine durable and require no long maintenance; Less water
consumption, low noise, in line with the national environmental
standards.
4, Working principle
When the XSD series sand washing machine is working, the motor
drives the impeller to rotate slowly after deceleration through the
V-belt, reducer and gear. The sand and gravel enter the washing
trough with the feeding trough, tumble under the impeller, and
grind each other to remove the covered sand Impurities on the
surface destroy .
At the same time, the water vapor layer covering the sand is
destroyed to facilitate dehydration. and add water to form a strong
water flow, timely take away impurities and foreign objects with
small specific gravity, and discharge them from the overflow
washing tank to complete the cleaning effect. The clean sand and
gravel are taken away by the blades, and the final gravel is poured
into the discharge chute from the rotating impeller to complete the
cleaning effect of the gravel.
5, Structure
6, Factory manufacturing and transportation
