Product description

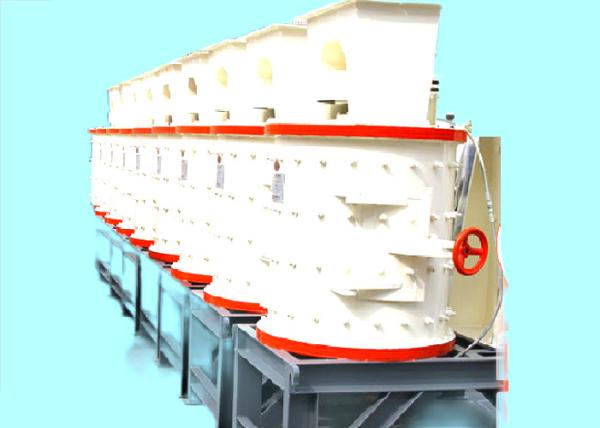

PFL800 Stone Crusher Machine Compound crusher Vertical composite
crusher
1, Description
ompound crusher (compound crusher), also known as vertical crusher,
is a new fine and coarse grinding crusher developed by senior
engineers in combination with the advanced technology of similar
crushers at home and abroad, which optimizes the main technical
parameters and improves the structural characteristics according to
the actual situation and the needs of users. It has the advantages
of large production capacity, high crushing efficiency, large
crushing ratio, small abrasion and low energy consumption It has
outstanding advantages such as good sealing, stable operation and
convenient maintenance.
It is suitable for crushing medium-hard ores such as iron ore,
sandstone, gypsum, blast furnace slag, coal gangue, lump coal, etc.
It has the characteristics of large crushing ratio, low energy
consumption, stable operation, simple structure, and convenient
operation and maintenance.
It is widely used in cement raw meal, clinker, coal, building
materials, chemical industry, refractory materials, metallurgy,
cement, glass, ceramics, electric power and other industries to
provide ideal crushing equipment.
| Model | Speed(r/min) | MaxfeedingSize(mm) | Discharge size(mm) | Capacity(t/h) | power(kw) | Overalldimen siin(mm) | Weight(t) |
| PFL800 | 1350 | 50 | 0-5 | 5-15 | 30 | 2200x860x1980 | 2.3 |
| PFL1000 | 970 | 70 | 0-5 | 10-30 | 55 | 2700x1160x2000 | 4.6 |
| PFL1250 | 740 | 100 | 0-5 | 20-60 | 75 | 2800x1400x2730 | 7.8 |
| PFL1500 | 650 | 100 | 0-5 | 30-80 | 110 | 3100x1900x2300 | 19.8 |
| PFL1750 | 600 | 100 | 0-5 | 40-100 | 132 | 3350x2100x2800 | 24.5 |
2, Product advantages
1. Large crushing ratio: the crushing ratio of the composite
crusher (composite crusher) is large, and the crushing ratio can
reach the discharge particle size, which can be adjusted
arbitrarily without being affected by the wear of plate hammer and
lining plate.
2. Not easy to block: without screen bar setting, it is not easy to
block when crushing materials with high moisture content and large
mud content; The elastic adjustment mechanism is adopted, and the
non broken objects can be discharged automatically without causing
equipment damage.
3. It can crush materials with high temperature: the bearings are
arranged horizontally and have a long service life. It can crush
materials with high temperature (such as cement clinker).
4. Advanced structure and convenient maintenance: the rotor body of
the machine has a unique structure, and the rotor body is hardly
worn when crushing materials; The rear cavity is provided with a
screw rod or hydraulic opening mechanism, which can easily replace
vulnerable parts without starting the main equipment.
3, working principle
The materials vertically fall into the high-speed rotating impeller
from the upper part of the machine. Under the action of high-speed
centrifugal force, they are separated with another part in the form
of umbrella. The materials around the impeller produce high-speed
impact and crushing. After the materials collide with each other,
they will form eddy currents between the impeller and the casing,
collide and rub with each other for many times, and discharge
directly from the lower part, Form a closed circuit for multiple
cycles, and the screening equipment controls to achieve the
required particle size of finished products.

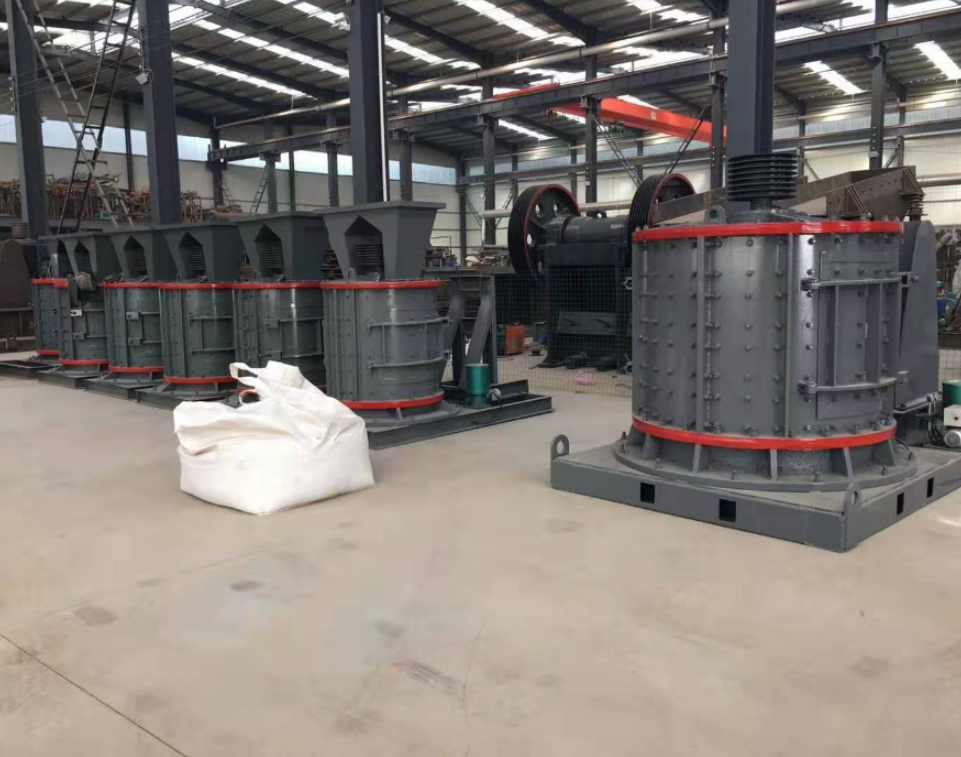

5, Factory manufacturing and transport
