YG1860S48/ YG2160S66 Model mobile crusher mine beneficiation ore crushing
1, Description
The products of crawler mobile station include crawler jaw crusher,
crawler impact crusher, crawler cone crusher, crawler sander
crusher, crawler screening station, roller screen and stacker
reclaimer belt conveyor. Products are widely used in stone
crushing, composting screening, construction waste treatment and
recycling, landscaping, composting and wood recycling.
2, Product advantages
1. The noise muffler, high quality noise absorption system, compact
and flexible equipment in the crawler type mobile crushing station
can better meet the requirements of construction waste crushing
operation between urban areas.
2. The effective dust removal system, suitable noise emission
condition of diesel engine, and the release system can remotely
control the hydraulic pressure to remove the obstacles in the
crawler type mobile crushing station. The pre screening device can
greatly improve the crushing efficiency.
3, Technical Parameters
| model | 3YBY1590 | 3YZS1548 | 3YBY1851 | 3YBY2122 |
| Vibrating feeder | 3YZS1548 | 3YZS1848 | 3YZS1860 | 3YZS2160 |
| Cone crusher | PYB900 | ZYS36 | ZYS51 | HP220 |
| Belt conveyor | B500*7M | B650*7M | B650*8M | B800*8M |
| Capacity(t/h) | 50-200 | 70-300 | 120-400 | 140-450 |
| Power(kw) | 75 | 99-134 | 212.5-220.5 | 257.5-264.5 |
| Overall dimension(mm) | 13000*2800*6400 | 13000*3000*6700 | 14000*3000*6700 | 14000*3200*6700 |
| Weight(t) | 43 | 47 | 53 | 58 |
| Model | to configure | Configuration model | Model | to configure | Configuration model |
| YG2575E57 | Mobile car | Parallel double axle | YG1142E760 | Mobile car | Parallel installation of three shafts |
| Jaw Crusher | PE500x750 | Jaw Crusher | PE750x1060 |
| Feeder | ZSW7525 | Feeder | ZSW1142 |
| Conical slope | PYD900 | Host belt | B1000x10m |
| Vibration sieve | 2YZS1548 | Distribution cabinet + cable | |
| Host belt | B500x18m | | |
| Discharge belt | B500x10mx4 | Model | to configure | Configuration model |
| Return belt | B500x15m | YG1349E912 | Mobile car | Parallel installation of three shafts |
| Distribution cabinet + cable | | Jaw Crusher | PE900x1200 |
| Model | to configure | Configuration model | Feeder | ZSW1349 |
| YG938E69 | Mobile car | Parallel double axle | Host belt | B1000x7m |
| Jaw Crusher | PE600x900 | Distribution cabinet + cable | |
| Feeder | ZSW9638 |
| Host belt | B650x7m |
| Distribution cabinet + cable | |
| Model | to configure | Configuration model | Model | to configure | Configuration model |
| Y3S1548F1010 | Mobile car | Parallel double axle | Y3S1860F1214 | Mobile car | Parallel installation of three shafts |
| Impact Crusher | PF1010 | Impact Crusher | PF1214 |
| Vibration sieve | 3YZS1548 | Vibration sieve | 3YZS1860 |
| Host belt | B500x7m | Host belt | B800x7m |
| Distribution cabinet + cable | | Distribution cabinet + cable | |
| Model | to configure | Configuration model | Model | to configure | Configuration model |
| Y3S1848F1210 | Mobile car | Parallel double axle | Y3S2160 | Mobile car | Parallel installation of three shafts |
| Impact Crusher | PF1210 | Impact Crusher | PF1315 |
| Vibration sieve | 3YZS1848 | Vibration sieve | 3YZS2160 |
| Host belt | B650x7m | Host belt | B800x7m |
| Distribution cabinet + cable | | Distribution cabinet + cable | |
4, Working principle
It adopts self driving mode with advanced technology and complete
functions. In different terrain conditions, the equipment can reach
any position of the workplace. This can reduce the material
handling operation and facilitate the coordination of all auxiliary
mechanical equipment. Through wireless remote control, the crusher
can be easily driven to the trailer and transported to the
operation site.

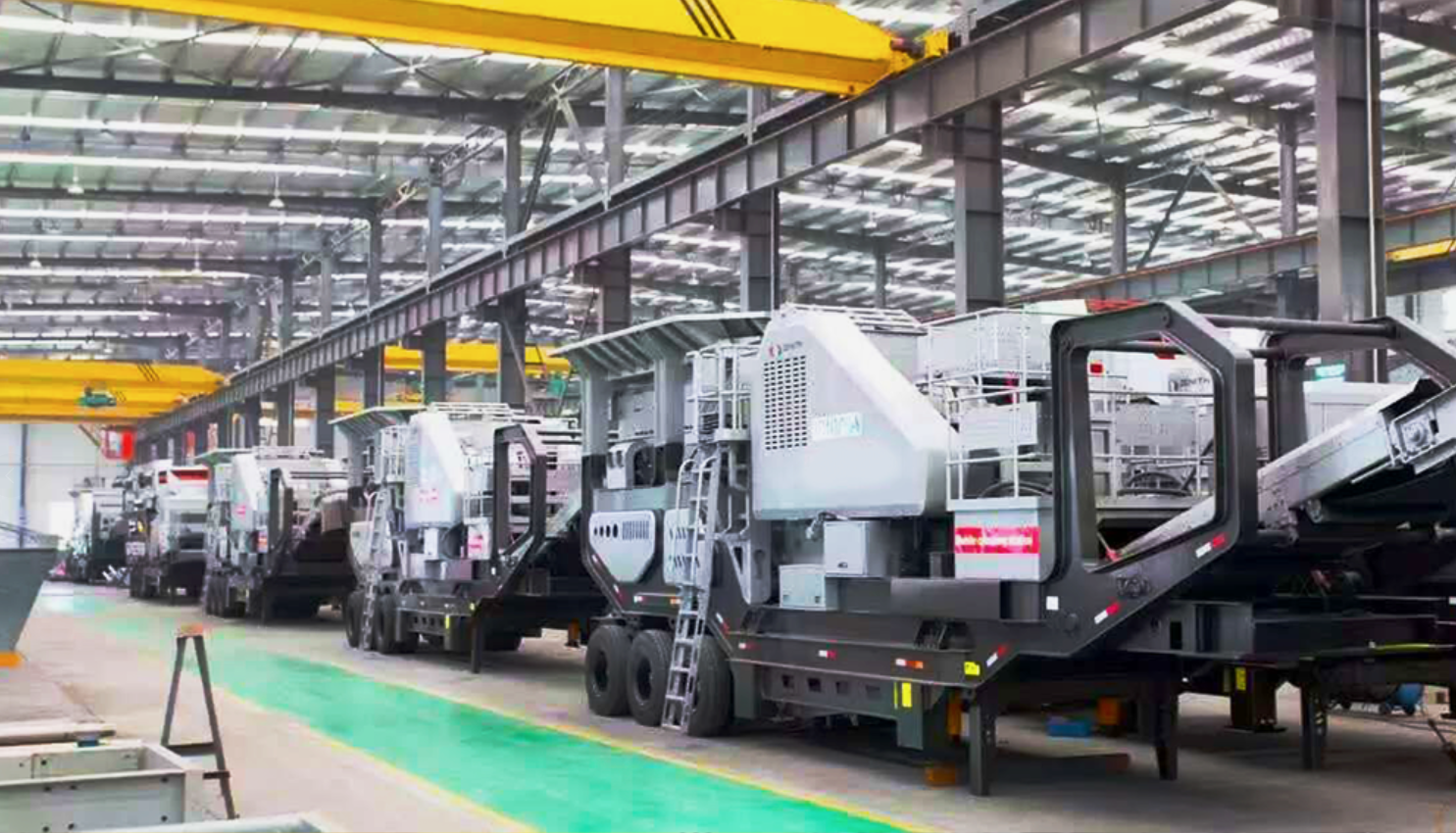

5, Factory manufacturing and scene
