Product description
LD-PE600x900 Model Crawler Mobile Crushing station mine beneficiation ore crushing
1, Description
The products of crawler mobile station include crawler jaw crusher,
crawler impact crusher, crawler cone crusher, crawler sander
crusher, crawler screening station, roller screen and stacker
reclaimer belt conveyor. Products are widely used in stone
crushing, composting screening, construction waste treatment and
recycling, landscaping, composting and wood recycling.
2, Product advantages
1. The noise muffler, high quality noise absorption system, compact
and flexible equipment in the crawler type mobile crushing station
can better meet the requirements of construction waste crushing
operation between urban areas.
2. The effective dust removal system, suitable noise emission
condition of diesel engine, and the release system can remotely
control the hydraulic pressure to remove the obstacles in the
crawler type mobile crushing station. The pre screening device can
greatly improve the crushing efficiency.
3, Technical Parameters
| Items | Model | LD-PE600x900 | LD-PE750x1060 | LD-PEW860 |
| Viprating Feeder | Model | GZD960x3500 | GZD110x3800 | GZD1300x4200 |
| Motor Power(kw) | 11 | 15 | 18.5 |
| Jaw Crusher | Model | PE600x900 | PE750x1060 | PEW860 |
| Motor Power(kw) | 75 | 110 | 132 |
| Discharge Conveyor | Model | B800x10m | B1000x10.5m | B1200x11m |
| Belt Width(mm) | 800 | 1000 | 1200 |
| Chassis Assembly | Light duty general type | Light duty general type | Light duty general type |
| Crawler Tracks | Dimensions(L.W.H/Plate Width) | 3500x2800x820/400mm | 3800x2900x820/400mm | 4080x3000x820/500mm |
| Track Type | Light duty general type | Light duty general type | Light duty general type |
| Power System | Diesel Engine | Cummins engine 6BTAA5.9-C205 | Cummins engine 6LTAA8.9-C300 | Cummins engine 6BTAA8.9-C360 |
| Power(kw) | 150 | 220 | 260 |
| Hydraulic System Power Source | Pumps mounted on power pack |
| Transport Dimensione | 121000mmx2980mmx3650mm | 13250mmx2980mmx4150mm | 14200mmx3160mmx4230mm |
| Weight | 44.5t | 59.8t | 63.9t |
| Performance | Max.Feeding Size(mm) | 500 | 630 | 720 |
| Capacity(t/h) | 70-120 | 130-260 | 200-500 |
| Travelling Speed(km/h) | 1.2 | 1.2 | 1.2 |
| Max.slope-climbing capability | 20° | 20° | 20° |
| Optional ltems | Side Conveyor | B500x3.5m | B650x3.5m | B650x4m |
| Lron Remover | PCYD(C)-8 | PCYD(C)-10 | PCYD(C)-12 |
4, Working principle
It adopts self driving mode with advanced technology and complete
functions. In different terrain conditions, the equipment can reach
any position of the workplace. This can reduce the material
handling operation and facilitate the coordination of all auxiliary
mechanical equipment. Through wireless remote control, the crusher
can be easily driven to the trailer and transported to the
operation site.

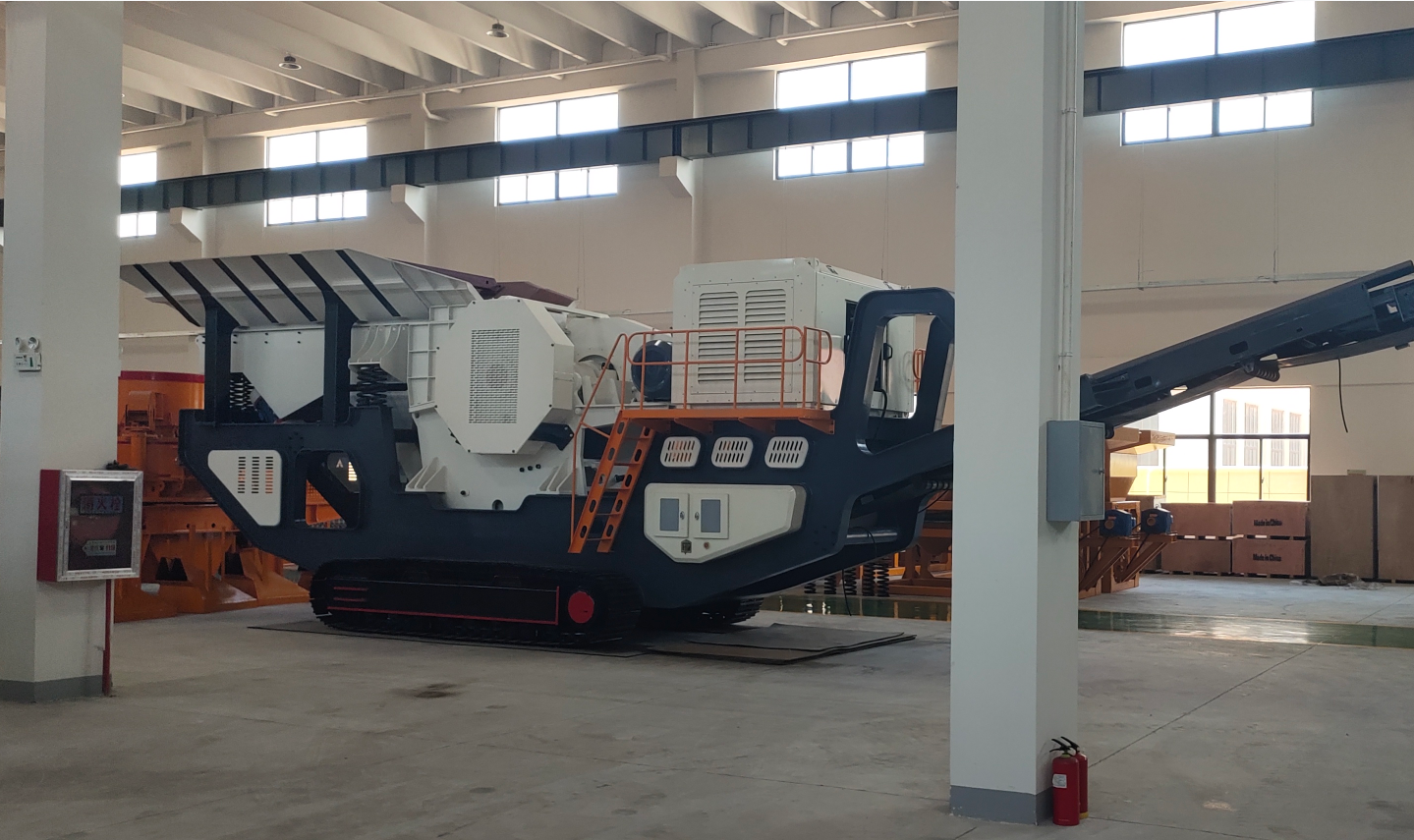

5, Factory manufacturing and scene
Tag:
Crawler Mobile Crushing station mine beneficiation ore crushing Jaw
Crusher
