SZF 1030 Vibrating Screen Machine 0.75kw Beneficiation Machine

Product description

GTS1030 Vibrating Screen Machine Roller screenSand making screening and beneficiation

1, Description

Linear vibrating screen is a multifunctional screening equipment, which can not only be used in various industries. It also has the characteristics of large output and high precision. It is more reasonable to customize it mainly according to the materials you need to screen. At the same time, it will easily achieve your screening purpose. It is composed of vibrating motor, screen box, screen, vibration transmission body and vibration damping device.

2, Technical Parameters

Model	Deck demension (mm)	Maxfeeding Size(mm)	Angle(°)	Amplitude(mm)	Capacity(t/h)	power(kw)	Decks
SZF1030	1000x3000	0.074-10	0-7°	4-8	5-7	0.75x2	1-5
SZF1040	1000x4000	0.074-10	0-7°	4-8	5-10	0.75x2	1-5
SZF1230	1200x3000	0.074-10	0-7°	4-8	10	1.1x2	1-5
SZF1530	1500x3000	0.074-10	0-7°	4-8	15	1.5x2	1-3
SZF1540	1500x4000	0.074-10	0-7°	4-8	20	2.2x2	1-3
SZF1545	1500x4500	0.074-10	0-7°	4-8	25	2.2x2	1-3
SZF1845	1800x4500	0.074-10	0-7°	4-8	35	3.7x2	1-3
SZF2050	2000x5000	0.074-10	0-7°	4-8	50	3.7x2	1-3

3, Product advantages

1. This type of screening machine is suitable for coarse separation with high production capacity;

2. The material has long stroke on the screen surface and large processing capacity;

3. Parallel transportation of materials while screening;

4. The inclination angle of screen surface can be adjusted to balance the production of screen penetration accuracy.

4, Working principle

The basic principle is to change the rotary motion of the motor into a horizontal, vertical and inclined three-dimensional motion by means of the weight (uneven weight) installed at the upper and lower ends of the motor shaft, and then convey the motion to the screen surface. If the phase angle of the upper and lower weights is changed, the moving direction of the raw material can be changed.

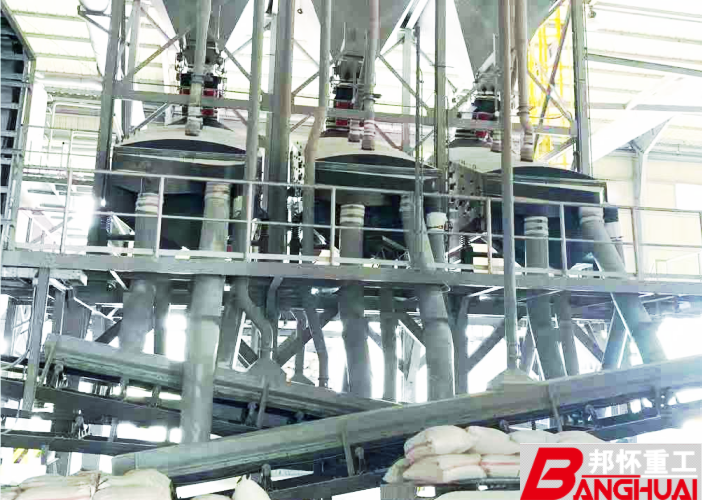

5, Factory manufacturing and scene
