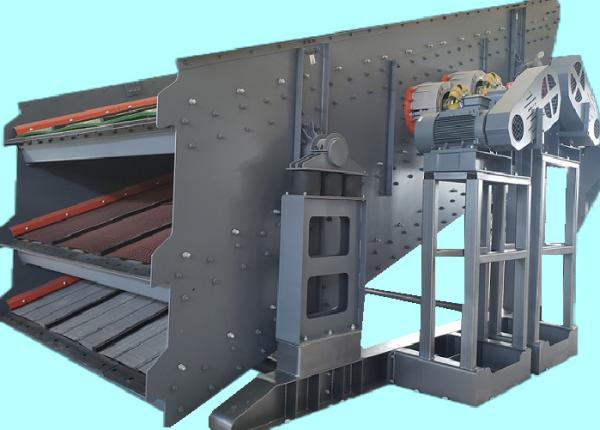

1, Description
The circular vibrating screen is manufactured with a solid
structure and is designed with an inclination of 15-20 degrees. It
is especially suitable for screening rough stones or ore.
This machine can adjust the weight of the eccentric block to meet
its needs. This model has a 15-20 degree inclination and the action
of gravity, so compared with a horizontal vibrating screen, it
requires less driving force, but it can produce a powerful
screening effect.
Suitable for Granite, basalt, diabase, shale, quartzite, river
pebble, limestone, iron ore, coal gangue, non-ferrous metal ore,
cobblestone, etc.
screening sand and gravel in quarries, and also for product
classification in coal preparation, mining, mineral processing,
building materials, electric power and chemical industries.
2, Technical Parameters
Model | Layers of screen | Mesh size (mm) | Maximum feedsize (mm) | Processing power (t/h) | Double amplitude (mm) | Power(kW) | Vibration frequency(r/min) | Screen surface specifications (mm) | Dimensions(mm) |
2Y-1237 | 2 | 3-50 | 200 | 7.5-80 | 8 | 4-15 | 970 | 1200×3700 | 4010×2250×2660 |
3Y-1237 | 3 | 3-50 | 200 | 7.5-80 | 8 | 4-15 | 970 | 1200×3700 | 4010×2250×3140 |
2Y-1548 | 2 | 5-50 | 400 | 50-208 | 8 | 4-15 | 970 | 1500×4800 | 5120×2590×3060 |
3Y-1548 | 3 | 5-50 | 400 | 50-250 | 8 | 4-15 | 970 | 1500×4800 | 5120×2590×3540 |
2Y-1848 | 2 | 5-80 | 400 | 50-260 | 8 | 4-18.5 | 970 | 1800×4800 | 5120×2950×3060 |
3Y-1848 | 3 | 5-80 | 400 | 50-300 | 8 | 4-18.5 | 970 | 1800×4800 | 5120×2950×3540 |
2Y-1860 | 2 | 5-80 | 400 | 50-300 | 8 | 4-18.5 | 970 | 1800×6000 | 6260×2950×3480 |
3Y-1860 | 3 | 5-80 | 400 | 50-350 | 8 | 4-22 | 970 | 1800×6000 | 6260×2990×3960 |
2Y-2160 | 2 | 5-150 | 400 | 100-500 | 6-8 | 4-22 | 730 | 2100×6000 | 6270×3410×3670 |
3Y-2160 | 3 | 5-100 | 400 | 100-500 | 6-8 | 4-30 | 730 | 2100×6000 | 6270×3470×4100 |
2Y-2460 | 2 | 5-150 | 400 | 150-700 | 6-8 | 4-37 | 730 | 2400×6000 | 6270×3770×3610 |
3Y-2460 | 3 | 5-150 | 400 | 150-700 | 6-8 | 4-37 | 730 | 2400×6000 | 6270×3790×4100 |
3, Product advantages
1. Advanced structure
2. Has many uses
3. Low power consumption and low noise
4. Advanced technology
5. Large processing capacity
4, Working principle
Y Series vibrating screening equipment screen machine mainly
consists of screen box, screen mesh, vibrator, damping spring
device, chassis and so on. The side plate of the screen is made of
high-quality steel plate, and the side plate is connected with the
beam and the base of the exciter with high-strength bolts or
ring-groove rivets. A cylindrical eccentric shaft exciter and an
offset block are used to adjust the amplitude.

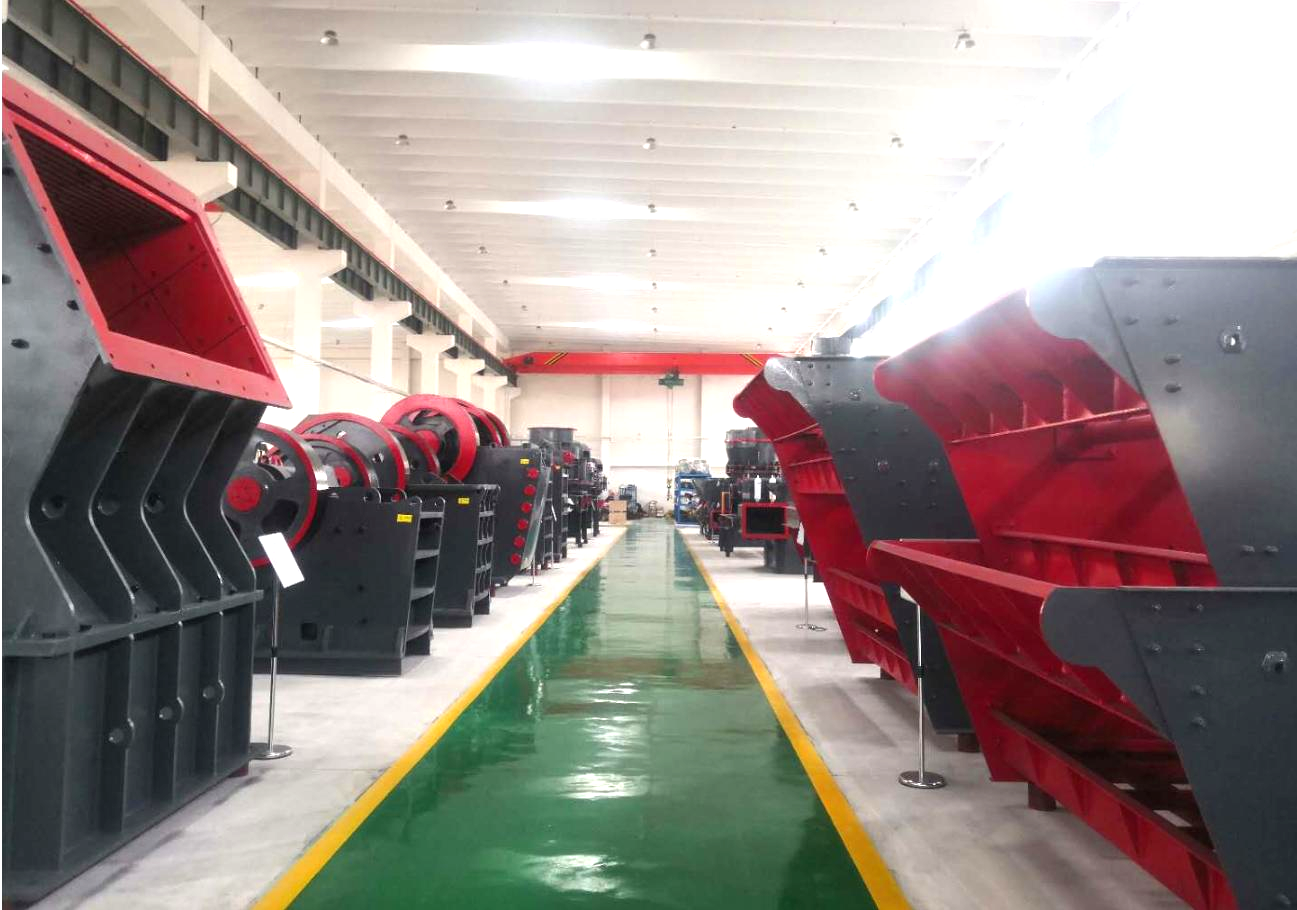

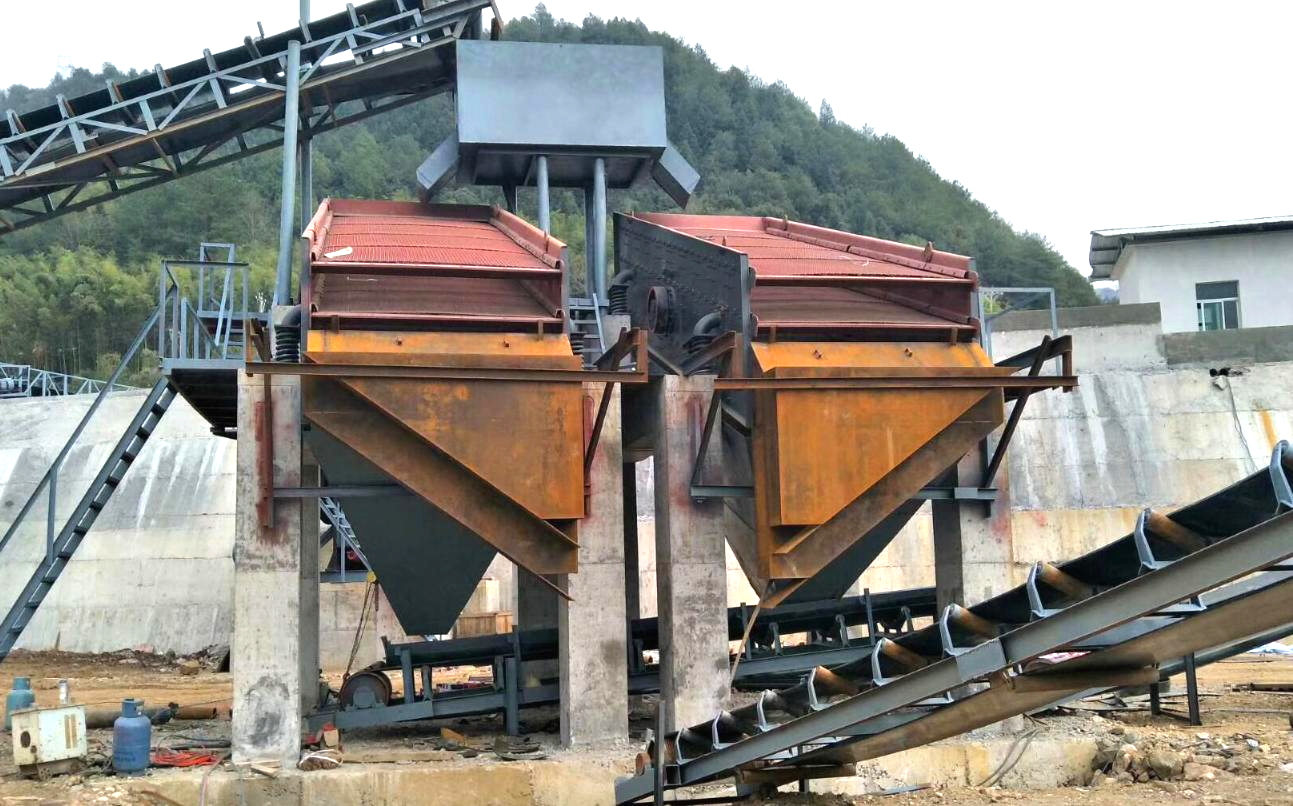

5, Factory manufacturing and scene
